Optical Glass Lens Grinding Polishing Tools

Diamond tools are used in the milling, finishing, super finishing, polishing and edge grinding processes of optical elements. Compared with common abrasives such as corundum, silicon carbide, ect., diamond tools have high grinding efficiency.

Cutting Wheels

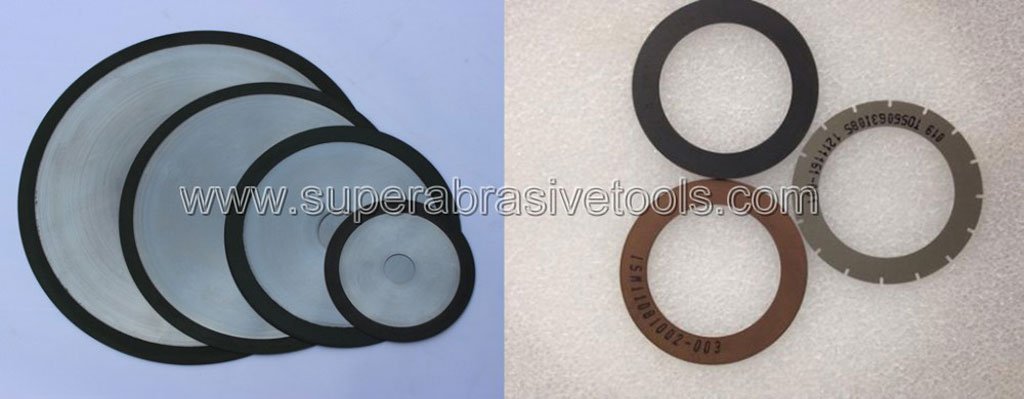

Diamond cut off wheel for optical glass

Diamond cut off wheel is an ideal tool for cutting raw materials of optical elements (initial shape ingots, blocks, plates, rings, rods, pipes, sheets, etc.), and it has high efficiency and good incision. The main types of saw blade are diamond circular saw blade, diamond cutting wheel,diamond dicing blade

Milling Grinding Wheel

Milling grinding wheels grind the optical elements blanks to form optical elements prototypes with certain geometric shape, dimensional accuracy and surface roughness.

Diamond milling grinding wheels are divided into flat diamond milling wheels and spherical diamond milling wheels.

Flat diamond milling grinding wheel is used for rough and finish grinding lens, prisms, and other optical glass.

flat diamond milling grinding wheel for optical glass

Product NameSpecificationGritHole Diameter

Flat Diamond Milling

Grinding Wheel

Φ250,Φ300,Φ350,Φ400,Φ450,Φ480,Φ50060/70-325/400Φ146,Φ230,Φ250,Φ360,Φ370

Sphere diamond milling grinding wheel is used for spherical milling grinding and chamfering such as optical lens, optical glass, and etc.

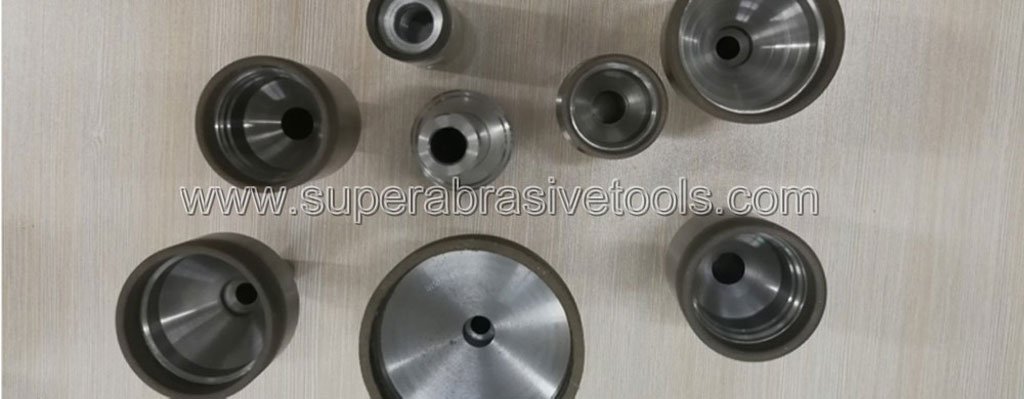

Sphere diamond milling grinding wheel for optical glass

Product NameSpecificationGritConnector
Sphere Diamond Milling Grinding WheelΦ3-Φ30030/35-325/400Upon request

Diamond finish pellet (column) and diamond super finish pellet(column)

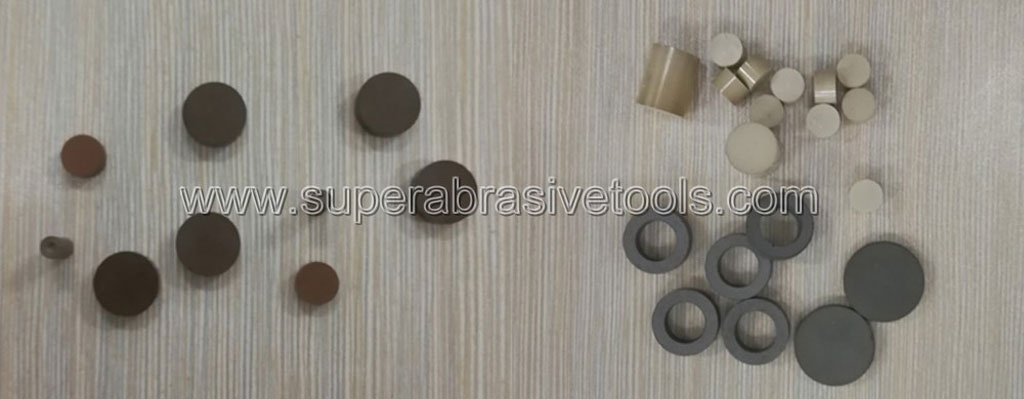

diamond finishing pellets for optical glass

Diamond finish pellets(columns) are mainly used for removing the damage layer and rough surface left by previous process, to ensure that optical elements have a certain size and machining margin.

Diamond super finish pellets(columns) are mainly used for removing the damage layer (rough surface) left by previous process, improving the shape and surface dimension, roughness and aperture value of optical elements.

Product NameSpecificationGritConcentrationRadian
DiameterThickness
Diamond finish pelletΦ3-Φ202.5-10180#-2000#75%-150%

Upon request

Diamond super finish pelletΦ3-Φ202.5-10800#-3000#75%-150%
Polishing pelletΦ3-Φ202.5-10

Diamond edge grinding wheel

Edge grinding wheels usually consist of metal, resin and electroplated diamond grinding wheels. Optical elements are ground vertically, parallel, obliquely and molding. Diamond edge grinding wheels are mainly used for removing the burrs, chips, thickness tolerance of optical elements excircle.

Diamond Profile grinding wheel

Used for profile milling and edge grinding for optical glass and lens.

Diamond edge grinding wheel for optical glass

Product NameSpecificationGritHole Diameter
Sintered metal profile grinding wheelΦ100-Φ400100#-800#Φ22,Φ25,Φ30,   Φ31.75,Φ32,Φ75,Φ127,Φ203
Electroplated edge grinding wheelΦ125, Φ150,    Φ160,Φ180,Φ200100#-800#Φ22,Φ30,Φ31.75,Φ32



Side and molding grinding wheel

Used for optical glass such as lens, prisms, etc. chamfering, molding, and edge grinding.

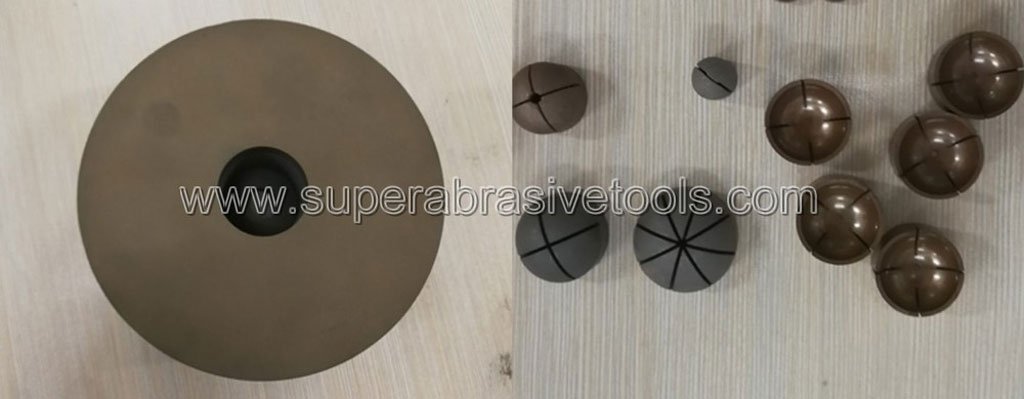

DIAMOND Side and molding grinding wheel for optical glass

Product NameSpecificationGritHole Diameter
Side grinding wheelΦ350,Φ300,Φ200,Φ150,  Φ125,   Φ100,Φ75,Φ50

180#,240#,280#,350#,400#,

500#,600#,800#,1000#,1200#,

1500#,1800#

Upon request
Forming grinding wheel moldΦ4-Φ200

Rough: 80#-180#,

Finish:150#-1500#,

Super finish:1000#-3000#,

Polishing:1500#-10000#

Upon request
