Diamond Grinding Wheel for Tungsten Carbide Tools

  • High grinding efficiency
  • Long service life
  • Good quality workpiece surface
  • High removal rate

Diamond Grinding Wheel for Tungsten Carbide Tools

The diamond grinding wheel for carbide has high precision, fast grinding, and good wear resistance. It is according to the characteristics of carbide and selection of a suitable bonding agent. It is made by selecting the right bond and diamond abrasive according to the characteristics of the carbide.

diamond grinding wheel for carbide drill bit saw blades

Tungsten carbide:

Tungsten carbide is an alloy material made from a kind of hard compound of refractory metal and a binding metal by the powder metallurgy technology.

Tungsten carbide is widely used as tool material such as turning tool, milling cutter, planer, drill, boring tool, etc. for cutting cast iron, non-ferrous metal, plastic, chemical fiber, graphite, glass, stone and ordinary steel, and can also be used for cutting hard-to-machine materials such as heat-resistant steel, stainless steel, high manganese steel, and tool steel.

The main components of cemented carbide are carbonization and titanium carbide,

Tungsten carbide features high hardness, good wear resistance, high strength and toughness, good heat resistance and corrosion resistance, especially its high hardness and wears resistance, which remains unchanged even at the temperature of 500 ° C, and it still has a high hardness at 1000 °C.

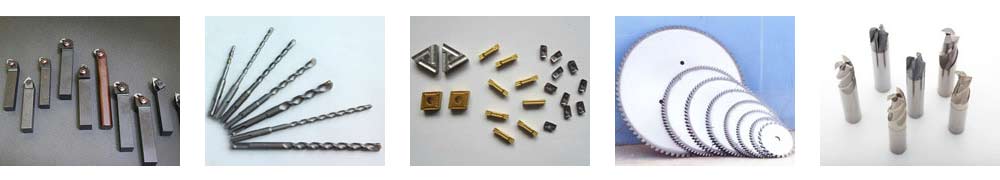

application of diamond grinding wheel for tungsten tools

Now diamond grinding wheels have advantages in grinding cemented carbide tools owing to its features.

There are resin bond and vitrified bond diamond grinding wheel for tungsten carbide

Resin Diamond Grinding Wheel for Carbide

Resin bond diamond grinding wheel can achieve an ideal grinding effect, but its grinding efficiency is low. For resin diamond grinding wheel, usually use 100-120# for rough grinding, but for vitrified diamond grinding wheel, usually use 120#-150# for rough grinding. From the above rough grinding, the vitrified diamond grinding wheel has a higher removal rate and better surface finish than that of resin grinding wheel.

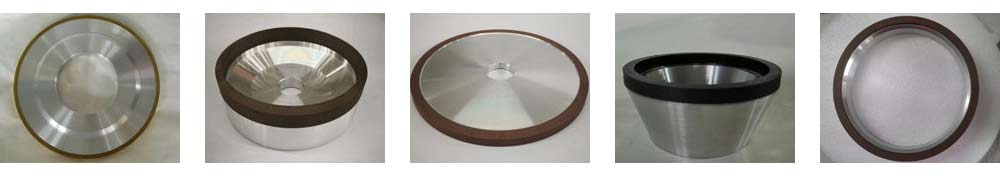

resin bonded diamond grinding wheel for tungsten carbide tools

Vitrified bonding agent bonded diamond more firmly than resin bond, and there are larger pores between abrasives and bond. For the same grinding allowance, the grinding efficiency of the vitrified diamond grinding wheel is twice as high as resin diamond grinding wheel, and the service life is 2-3 times as long as resin diamond grinding wheel.

Resin bond diamond grinding wheels are still widely used for grinding tungsten carbide because of the low cost and simple manufacturing process. When grinding large-sized grinding wheels, only choose resin bond grinding wheels. Vitrified bond grinding wheel cannot be made from large-sized one because of complicated manufacturing technology.

Vitrified Diamond Grinding Wheel for Carbide

Vitrified bond diamond grinding wheel has high strength and heat resistance better than that of resin bond wheel, cutting sharp, grinding efficiency is far higher than that of resin wheel. At the same time, it is not heated and blocks easily and the thermal expansion is small, and the shape of the workpiece remains good and can obtain good processing precision. The grinding wheel is not deformed easily during the grinding process, and the comprehensive cost is lower than that of resin bond diamond grinding wheel.

Vitrified Diamond Grinding Wheel for tungsten Carbide

At present, cemented carbide tools are widely used, and the type of tungsten and titanium carbide is increasing, and their quality is constantly improving. This requires the better improvement of the surface finish quality of the tungsten carbide.

With good self-sharpness, low cost and making large-sized grinding wheels, resin bond diamond grinding wheel is still widely used in the field of tungsten carbide processing industry. But the vitrified bond diamond grinding wheels will play a leading role in the machining cemented carbide tools.
